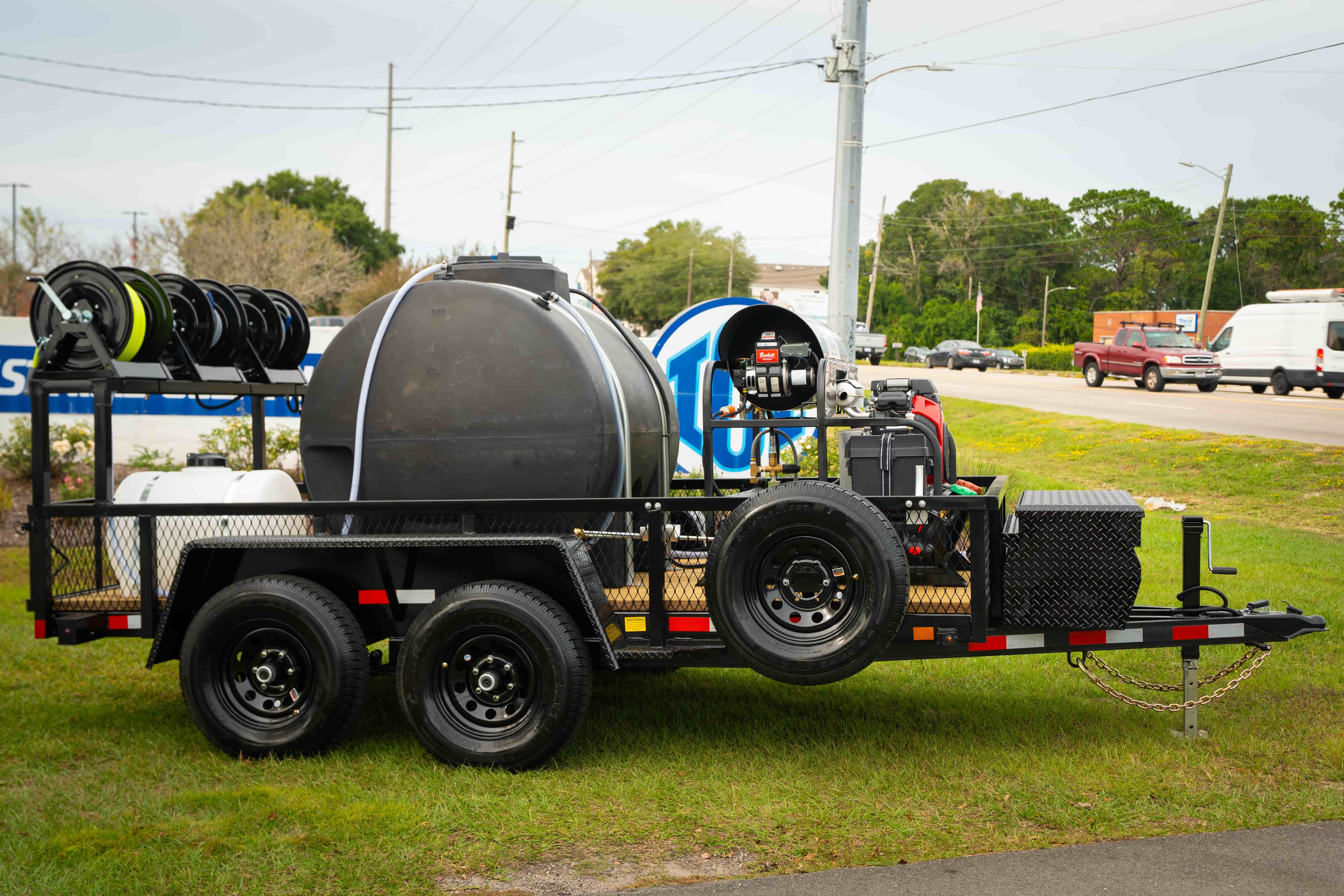

8GPM Super Mud Dog Trailer
The same as the original Mud Dog Trailer just bigger and badder, upgraded with a Honda GX690 Engine, TSF General Pump, and VB33 unloading system for a monster cleaning system designed for primarily a two gun operation.
Standard
SKID MOUNTED PRESSURE WASHER
- Heavy duty frame
- Electric start
- Hour meter
- General U seal tri-plex pump with five year warranty*
- Honda GX690, 24HP engine with three year warranty*
- General Pump blasts water at 8GPM and 3500PSI
- Manufacturer warranty's* against factory defects
- Beckett high-efficiency burner system, 225F heat rise, horizontal coil, rust-proof stainless steel cover,
adjustable thermostat, five year warranty on coil* - Skid is powder coated and has a vibration isolated power platform with shock absorbing feet.
- Unloader has a patent pending cool bypass system to make sure the pump does not get above ambient heat during bypass mode.
TANDEM AXLE 7X12 SUPER HEAVY DUTY 5200LB TRAILER
- Two 5200LB axles
- Tubular Chasis
- Electric break away system
- LED Lights
- Diamond plated stand on fenders
- Mesh lining
- Quadruple reinforced tongue
- 2 5/16 inch coupler
- Wind up jack
- Elevated Reel Rack
- Side steps
- Black wheels with a spare tire
ADDITIONAL STANDARD FEATURES
- 525-gallon leg tank for water with hand washing (your choice of black or white)
- Two 100ft heavy duty non marking water hose
- Two pressure hose reels, super swivels, 250ft capacity
- One garden hose reel with 100ft hose and float valve
- Your choice of three wands/guns, gun rack included
- Twelve nozzles - 0, 15, 25, 40, chemical 8GPM nozzles, long range
ICE JET chemical and rinse nozzles. JROD - 35-gallon chemical tank
- Diamond-plated locking tool box
- Two down stream chemical injection systems
- Turn key plumbing with hand wash station
- Blow out freezer protector
- Additional nozzles and O-rings
